Paving

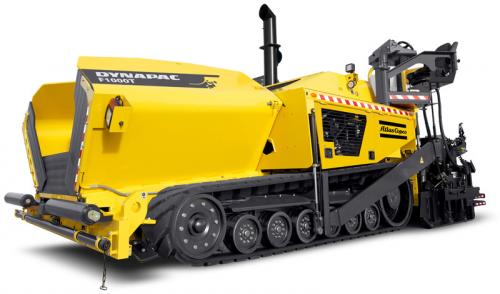

Dynapac F1000T (T4) Tracked pavers

  • Pictures
  • Dimensions
A. Axle track 2413 mm
B1. Width, max. 3277 mm
B2. Width, standard 3050 mm
B3. Width, center of tracks 2413 mm
C1. Track width 457 mm
H1. Height, max. 3353 mm
H2. Height, transport 2690 mm
H3. Height
H3. Height 1600 mm
L1. Length 6500 mm
L2. Length, wheelbase 3048 mm
Discontinued true
Basic paving width: 3.05 m
Max. paving width: 7.93 m
Max. layer thickn.: 305 mm
Theor placement cap.: 1600 t/h

Technical data

Masses
Weight 15875 kg
Traction
Paving speed 0-32 m/min
Maximum paving speed 73 m/min
Transport speed 16 km/h
Engine / Drive
Manufacturer/Model Cummins QSB 6.7-220 (Tier 4i)
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 164 kW (220 hp ) @ 2000 rpm
Electrical system 24 Volt
Generator (tractor mounted) 34 KW, 60 Hz, Drive: Hydraulic
Fuel tank capacity 370 l
Alternative Engine
Manufacturer/Model Cummins QSB 6.7-225 (Tier 4 Final)
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 225 hp @ 2300 rpm
Operation
Operator console Dual Swing out
Dashboard Ergonomic dashboard with Multifunction
display on each console
Conveyor
Conveyor type Dual bar feeder
Conveyor width mm
Conveyor width 2 x 685 mm
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Auger gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,2 liter
Conveyor gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 3 liter
Grease
Type of fluid Volume Additional info
Dynapac Paver Grease
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 4,5 liter
Wheel drive gearbox
Type of fluid Volume Additional info
Dynapac Gear Oil 200 2,8 liter

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017339
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812227023
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017324
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017328
Conveyor guide roller kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017327
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017331
Conveyor wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017330 Wear part kit conveyor chain cover
Hopper rubber kit, hydr. front flap
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017364
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017361
Paving Wheeled pavers 4812018543 From Serial number 0G001835 ->
Hopper rubber kit; with front hopper
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812018544 from Serial number 0G001835 ->
Service kit 1000h
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812017353 Maintenance kit 1000h
Service kit 500h
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812009772 Maintenance kit 500h without engine oil
Paving Wheeled pavers 4812017346 Maintenance kit 500h with engine oil
