Paving

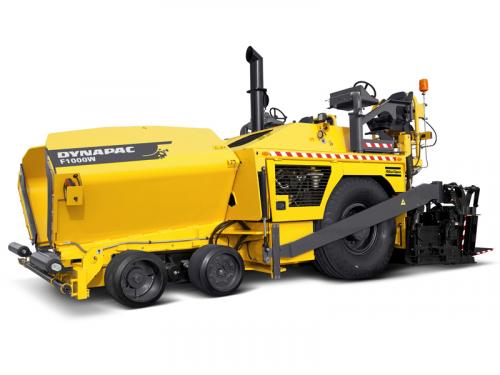

Dynapac F1000W (T4) Wheeled pavers

  • Pictures
  • Dimensions
A. Wheelbase 2413 mm
B1. Width, max. 3277 mm
B2. Width, standard 3050 mm
H1. Height, max. 3353 mm
H2. Height, with folded exhaust 2693 mm
H3. Height 1600 mm
H4. Dumping height
K. Ground clearance
L1. Length 6655 mm
L2. Length, hopper
L2. Length, wheelbase 2032 mm
L3. Length, wheel module 940 mm
Discontinued true
Basic paving width: 3.05 m
Max. paving width: 7.93 m
Max. layer thickn.: 305 mm
Theor placement cap.: 1600 t/h

Technical data

Masses
Weight 15150 kg
Traction
Paving speed 0-39 m/min
Maximum paving speed 87 m/min
Transport speed 19 km/h
Engine / Drive
Manufacturer/Model Cummins QSB 6.7-220
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power 162 kW (220 hp ) @ 2000 rpm
Emissions according to Tier 4i
Electrical system 24 Volt
Generator (tractor mounted) 34 KW, 60 Hz, Drive: Hydraulic
Fuel tank capacity 370 l
Alternative Engine
Manufacturer/Model Cummins QSB 6.7-225 (Tier 4 Final)
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 225 hp @ 2000 rpm
Operation
Operator console Dual Swing out
Dashboard Ergonomic dashboard with Multifunction
display on each console
Conveyor
Conveyor type Dual bar feeder
Conveyor width mm
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.
