Paving

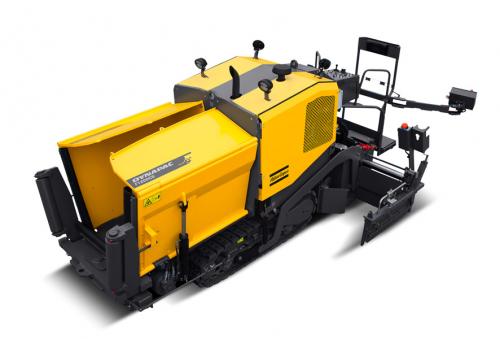

Dynapac F1200CS Compact pavers

  • Pictures
  • Dimensions
A. Axle track 1390 mm
B1. Width, max. 2830 mm
B2. Width, standard 1200 mm
B3. Width, center of tracks 940 mm
C1. Track width 205 mm
H1. Height, max.
H2. Height, transport 1900 mm
H3. Height 490 mm
L1. Length, total 4360 mm
L2. Length, transport 3880 mm
L3. Length, hopper 1310 mm
Discontinued true
These small but powerful pavers are especially designed for reinstatement and construction works which require are low working widths. Particularly job sites like cycle-tracks, side walks, pavement-extensions, car-parks and sport-fields are ideally suited for Dynapac minipavers.
Basic paving width: 1.20 m
Max. paving width: 3.10 m
Max. layer thickn.: 200 mm
Theor placement cap.: 300 t/h

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.


Dynapac Stage IV / TIER 4f
Stage IV / TIER 4f

Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

Technical data

Masses
Mass (incl. standard screed) 5.9 t
Traction
Paving speed up to 27 m/min
Transport speed 3.3 km/h
Engine / Drive
Manufacturer/Model
Rated power
Fuel tank capacity l
Alternative Engine
Manufacturer/Model Deutz TD2.9 L4
Emissions according to Tier 3/Tier 4
Rated power 54 kW (72 hp) @ 2200 rpm
Electrical system 2 x 24V, 72 Ah
Fuel tank capacity 85 l
Operation
Operator console Slidable left/right
Platform Extendable platform
Conveyor
Conveyor type Splitted conveyor drive with center cover
Conveyor width 650 mm
Conveyor control Automatic with limit switches

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Coolant
Type of fluid Volume Additional info
Dynapac Coolant 100 10 l (mixed with water 50/50) P/N
25 l can 4812161854
Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 6,5 l P/N
5 l can 4812161887
20 l can 4812161888
209 l drum 4812161889
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 200 11,2 l lubricating Oil P/N
5 l can 4812161855
20 l can 4812161856
209 l drum 4812161857
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease - P/N
0,4 kgs cartridge 4812030096
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 32 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869
Hydraulic system
Type of fluid Volume Additional info
Dynapac Hydraulic 300 42 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869
Rear axle - differential
Type of fluid Volume Additional info
Dynapac Gear Oil 300 4,5 l P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Rear axle - pinion housing
Type of fluid Volume Additional info
Dynapac Gear Oil 300 0,3 l P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Rear axle - planetary gear
Type of fluid Volume Additional info
Dynapac Gear Oil 300 0,9 l/side P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885

Service Kits

Bolt-on pad shell kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812118047
Drum rotation kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4700950154
Eccentric shaft kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4700950153
Service kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159569 Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159486 Not including oil
Compaction Single drum vibratory rollers 4812159487 Including oil
Service kit , 2000H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159486 Not including oil
Compaction Single drum vibratory rollers 4812159490 Including oil
Service kit , 500H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159484 Not including oil
Compaction Single drum vibratory rollers 4812159485 Including oil
Service kit , 50H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159573 Not including oil
Compaction Single drum vibratory rollers 4812159483 Including oil
Shock absorber kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812156185
Steering hitch kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4700950156

Spare parts manuals

Eager to see the spare parts of Dynapac F1200CS?

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Standard

2 front & 2 rear lights, Conventional electrics, Conveyor reversible (splitted), Dashboard with toggel switches, Eco Mode, Extendable steps operator platform, Hopper hydraulic separate control, Mechanical auger height adjustm., Mechanical conveyor limit switches, Ultrasonic sensors auger

Optional

Back-up alarm, Cut off shoes (250mm or 350mm), Emulsion spray equipment (Gloria), Emulsion spray equipment, pump, hose dispensor, Fire extinguisher, First aid kit, Foldable material guide plates, LED lights, Light for auger compartment, Material laying kit (left or right), Panolin bio hydraulic oil, Remote steering device, Rotating flashing beacon, Side shield easy adjust, Special painting, Working widths
