Paving

Dynapac F1800W Wheeled pavers

  • Pictures

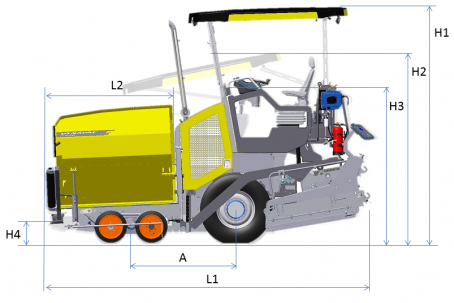

  • Dimensions
A. Wheelbase 1,600 mm
B1. Width, max. 3,148 mm
B2. Width, standard 1,800 mm
B3. Width, center of wheels 1,451 mm
H1. Height, max. 3,600 mm
H2. Height, transport 2,915 mm
H3. Height 2,400 mm
H4. Dumping height 500 mm
K. Ground clearance
L1. Length 5,022 mm
L2. Length, hopper 1,985 mm
Discontinued true
Basic paving width: 1.80 m
Max. paving width: 4.70 m
Max. layer thickn.: 200 mm
Theor placement cap.: 350 t/h

Technical data

Masses
Mass (incl. standard screed) 10300 kg
Traction
Maximum paving speed 25 m/min
Transport speed km/h
Maximum travel speed km/h
Engine / Drive
Manufacturer/Model Deutz, 2,9L TD 4 Cylinder
Rated power 54 kW @ 2,200 rpm
Emissions according to Tier 3 or Tier 4
Electrical system 24 V
Fuel tank capacity 73 l
Alternative Engine
Manufacturer/Model
Operation
Platform Extendable roof, slidable seat station
sliding/tilting control panel, swivel seat
Operational controls Conventional
Conveyor
Conveyor control Proportional speed control,
Both sides driven independently
Conveyor type Dual bar feeder
Conveyor width 700 mm
