Dynapac F80W

Dynapac F80W Mini pavers

  • Experience
  • Pictures

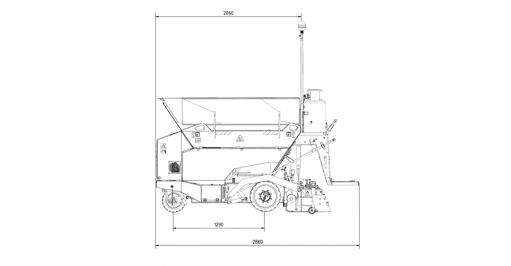

  • Dimensions
B. Width 1.15 m
H1. Height 1.59 m
H2. Height, operator platform 0.43 m
L1. Length 2.86 m
L2. Length, transport 2.55 m
L3. Length, hopper 1.67 m
Discontinued false
Basic paving width: 0.8 m
Max. paving width: 1.65 m
Max. layer thickn.: 100 mm
Theor placement cap.: 35 t/h

Technical data

Masses
Max. operating mass 1340 kg
Operating mass (CECE) 1260 kg
Traction
Paving speed 0-25 m/min
Transport speed 0-5 km/h
Engine / Drive
Manufacturer/Model Hatz 1B50E
Emissions according to EU Stage V / U.S. Tier 4F
Rated power 7.6 kW
Type Air cooled
Electrical system 12 V
Fuel tank capacity 5 l
Conveyor
Conveyor control Automatic with limit switch and flow gates
Conveyor type One conveyor, reversible

Equipment (Standard and options)

Optional

■ Mechanical extensions (2x 175 mm) till 1650 mm
■ Twin rear wheels
■ Hopper filling help
■ Additional auger LED light
■ Copying roller
■ Customer Colour
■ Emergency Kit
■ Front wheel scraper
■ USB Documentation
