Paving

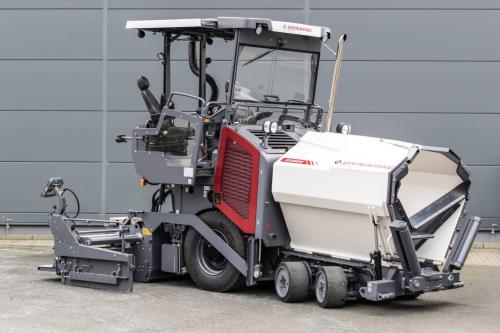

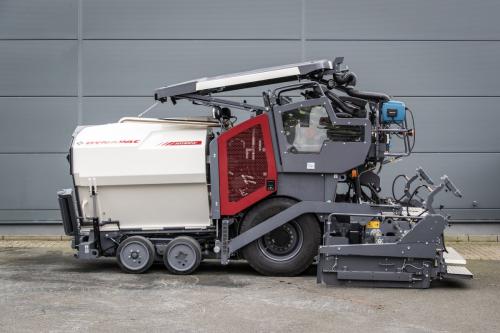

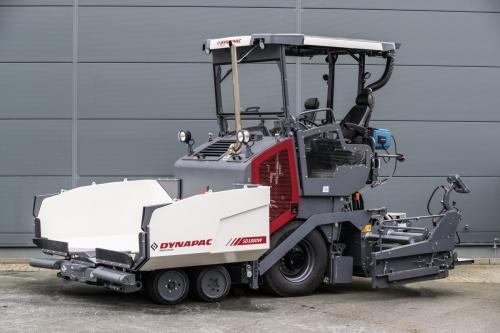

Dynapac SD1800W City pavers

0
My comparison
  • Experience
  • Pictures
  • Dimensions
Working width, hydraulic extendable 3.50 m
Working width, minimum (with reducing shoe) 0.70 m
Front ramp angle 15°
A. Wheelbase 1.60 m
B1. Width, max. 3.15 m
B2. Width, standard 1.80 m
B3. Width, center of wheels 1.45 m
H1. Height, max. 3.60 m
H2. Height, transport 2.92 m
H3. Height 2.40 m
H4. Dumping height 0.50 m
L1. Length 4.99 m
L2. Length, hopper 1.99 m
Basic paving width: 1.80 m
Max. paving width: 4.70 m
Max. layer thickn.: 200 mm
Theor placement cap.: 350 t/h

Technical data

Masses
Mass (incl. standard screed) 10.3 t
Traction
Maximum paving speed 25 m/min
Transport speed 15.0 km/h
Alternative Engine
Manufacturer/Model Deutz, 2,9L TD 4 Cylinder
Rated power 54 kW @ 2200 rpm
Emissions according to Tier 3 / Stage V
Electrical system 24 V
Fuel tank capacity 73 l
Operation
Operational controls Pavemanager 2.0 (PLC)
Platform Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat
Conveyor
Conveyor control Automatic with paddles
Conveyor type Dual bar feeder
Conveyor width 700 mm

Operations & maintenance manuals

Fluids

Coolant
Type of fluid Volume Additional info
Dynapac Coolant 100 6 l P/N
25 l can 4812161854
Drum oil
Type of fluid Volume Additional info
Dynapac Gear Oil 300 6 l P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 200 7 l P/N
5 l can 4812161855
20 l can 4812161856
209 l drum 4812161857
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease - P/N
0.4 kgs cartridge 4812030096
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 40 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869

Service Kits

Eccentric shaft kit
Category Subcategory P/N Additional info
Compaction Double drum vibratory rollers 4700938908
Service kit , 1000H
Category Subcategory P/N Additional info
Compaction Double drum vibratory rollers 4812161686 CC1100 VI (28 kW) (T4)
Compaction Double drum vibratory rollers 4812161687 CC1100 VI (28 kW) (T4) Plus kits
Compaction Double drum vibratory rollers 4812161680 CC1100 VI (26 kW) (IIIA)
Compaction Double drum vibratory rollers 4812161681 CC1100 VI (26 kW) (IIIA) Plus kits
Compaction Double drum vibratory rollers 4812161681 CC1100 VI (18,5 kW) (T4) Plus kits
Service kit , 250H
Category Subcategory P/N Additional info
Compaction Double drum vibratory rollers 4812160462 CC1100 VI (28 kW) (T4)
Compaction Double drum vibratory rollers 4812160462 CC1100 VI (26 kW) (IIIA)
Compaction Double drum vibratory rollers 4812161677 CC1100 VI (26 kW) (IIIA) Plus kits
Compaction Double drum vibratory rollers 4812160462 CC 1100 VI (18,5) (T4)
Compaction Double drum vibratory rollers 4812161677 CC1100 VI (18,5 kW) (T4) Plus kits
Service kit , 500H
Category Subcategory P/N Additional info
Compaction Double drum vibratory rollers 4812161684 CC1100 VI (28 kW) (T4)
Compaction Double drum vibratory rollers 4812161685 CC1100 VI (28 kW) (T4) Plus kits
Compaction Double drum vibratory rollers 4812161678 CC1100 VI (26 kW) (IIIA)
Compaction Double drum vibratory rollers 4812161679 CC1100 VI (26 kW) (IIIA) Plus kits
Compaction Double drum vibratory rollers 4812161678 CC 1100 VI (18,5) (T4)
Compaction Double drum vibratory rollers 4812161679 CC1100 VI (18,5 kW) (T4) Plus kits
Service kit , 50H
Category Subcategory P/N Additional info
Compaction Double drum vibratory rollers 4812161674 CC1100 VI (28 kW) (T4)
Compaction Double drum vibratory rollers 4812161674 CC1100 VI (26 kW) (IIIA)
Compaction Double drum vibratory rollers 4812161675 CC1100 VI (26 kW) (IIIA) Plus kits
Compaction Double drum vibratory rollers 4812161674 CC 1100 VI (18,5) (T4)
Compaction Double drum vibratory rollers 4812161675 CC1100 VI (18,5 kW) (T4) Plus kits
Service kit , 750H
Category Subcategory P/N Additional info
Compaction Double drum vibratory rollers 4812160462 CC1100 VI (28 kW) (T4)
Compaction Double drum vibratory rollers 4812160462 CC1100 VI (26 kW) (IIIA)
Compaction Double drum vibratory rollers 4812161677 CC1100 VI (26 kW) (IIIA) Plus kits
Compaction Double drum vibratory rollers 4812161680 CC 1100 VI (18,5) (T4)
Compaction Double drum vibratory rollers 4812161677 CC1100 VI (18,5 kW) (T4) Plus kits

Spare parts manuals

Compaction data

LEVEL II
