Paving

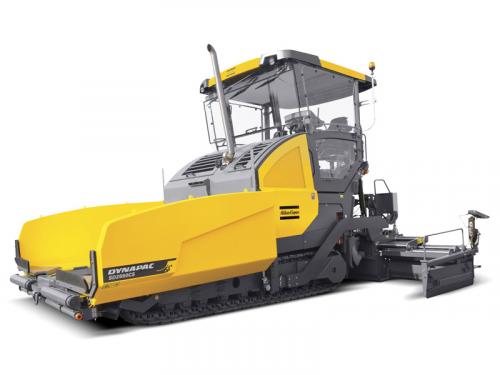

Dynapac SD2550CS Large pavers

  • Pictures
  • Dimensions
A. Axle track 3.36 m
B1. Width, max. 3.47 m
B2. Width, standard 2.55 m
B3. Width, center of tracks 1.99 m
C1. Track width 0.32 m
H1. Height, max. 3.90 m
H2. Height, transport 3.10 m
H3. Height 0.46 m
L1. Length 6.63 m
L3. Length, hopper 2.60 m

Product information

Let us introduce a new generation of Dynapac pavers. They combine decades of paving experience with the latest technology. The result: superior performance to get you into pole position.

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.


Dynapac Eco mode
Eco mode

Big fuel savings with ECO!



Dynapac Vario speed
Vario speed

Vario speed details here

Technical data

Masses
Weight (incl. standard screed) 20 t
Traction
Maximum paving speed 28 m/min
Transport speed 4.0 km/h
Engine
Manufacturer/Model Cummins QSB6.7-C260
Emissions according to Stage IIIA / EU Stage V / US EPA T4F
Rated power, SAE J1995 194 kW (264 hp) @ 2200 rpm with infinitely variable ECO-mode
Electrical system 24 V
Fuel tank capacity 320 l
Conveyor
Conveyor type Dual bar feeder
Conveyor control Automatic with limit switches
Conveyor width 2x 655 mm

Operations & maintenance manuals

Fluids

Coolant - no cab
Type of fluid Volume Additional info
Dynapac Coolant 100 27,2 l (mixed with water 50/50) P/N
25 l can 4812161854
Coolant - with cab
Type of fluid Volume Additional info
Dynapac Coolant 100 29,6 l (mixed with water 50/50) P/N
25 l can 4812161854
Drum cartridge
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 2,2 l/side P/N
5 l can 4812161887
20 l can 4812161888
209 l drum 4812161889
Drum gear
Type of fluid Volume Additional info
Dynapac Gear Oil 300 3,5 l P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 200 12,5 l lubricating Oil P/N
5 l can 4812161855
20 l can 4812161856
209 l drum 4812161857
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease - P/N
0,4 kgs cartridge 4812030096
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 41 l
P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869
Hydraulic system
Type of fluid Volume Additional info
Dynapac Hydraulic 300 84 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869
Rear axle - differential
Type of fluid Volume Additional info
Dynapac Gear Oil 300 11 l for Limited Slip
12,5 l for No-Spin
P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885
Rear axle - planetary gear
Type of fluid Volume Additional info
Dynapac Gear Oil 300 2 l/side
No-Spin 1,9 l/side
P/N
5 l can 4812161883
20 l can 4812161884
209 l drum 4812161885

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812157275
Eccentric shaft kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4700945657
Service kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812157254 (IIIA/T3) Start up kit
Compaction Single drum vibratory rollers 4812157254 (IIIB/T4i) Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812156995
Compaction Single drum vibratory rollers 4812157277 Incl. oil
Service kit , 2000H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812158053
Compaction Single drum vibratory rollers 4812157255 Incl. oil
Service kit , 500H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812156994
Compaction Single drum vibratory rollers 4812157363 Incl. oil
Service kit , 50H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812156993 (incl. oil)
Shock absorber kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812157276
Compaction Single drum vibratory rollers 4812158575 Drum
Steering hitch kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812157779 Tilt
Compaction Single drum vibratory rollers 4812157780 Turn

Spare parts manuals

Schematics

Eager to see the schematics of Dynapac SD2550CS?

Please Log in or Register to MyDynapac to get access.
