Dynapac XD25 70C Straßenfertiger

Mein Vergleich

Erfahrung
Bilder
Maße

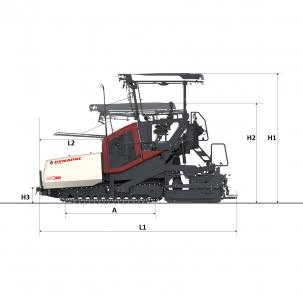

Blueprint Seitenansicht Dynapac XD25 70C

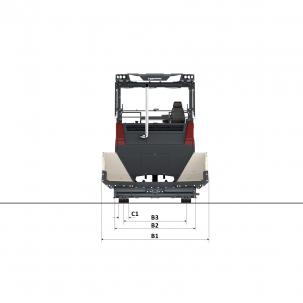

A. Laufwerkslänge	2.90 m
B1. Breite, max.	3.40 m
B2. Grundbreite	2.55 m
B3. Breite, Laufwerksmitte	1.99 m
C1. Crawler Width	0.32 m
H1. Höhe, max.	3.94 m
H2. Transporthöhe	3.10 m
H3. Push Roller Height	0.49 m
L1. Länge	6.15 m
L2. Länge, Mulde	2.12 m

Pave OS

Innovative operating system for asphalt pavers designed for maximum efficiency, intuitive operation, and full control over the entire paving process.

Sets new standards in machine control with a clear user interface and smart automation.

Dynalink

Dynalink system is a cutting-edge telematics fleet management solution, designed to provide real-time insights and remote monitoring.

Dynalink optimizes machine performance, reduces downtime, and enhances operational efficiency.

SD25 Concept

The SD Series features a dual-seat operating system, delivering enhanced comfort and precise control for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, the SD Concept elevates the operator experience through refined control and superior ergonomics.

Level Control

Perfect Leveling – Every Time Dynapac developed its own leveling sensors.

Level Control ensures seamless machine operation while maintaining compatibility and providing maximum flexibility.

Smart Construction Site

The future of road construction is digital, connected, and data-driven.

With Dynapac Nexus and the Open Interface technology, contractors and fleet managers gain unmatched control.

XD25 Concept

The XD Series Operating Concept redefines efficiency, comfort, and usability for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, contractors and fleet managers gain unmatched control and seamless data integration.

Einbaubreite: 2.550 mm

Arbeitsbreite, max.: 9 m

Einbaustärke, max.: 310 mm

Theor. Einbauleistung: 700 t/Std.

Funktionen und Vorteile

Technische Daten

Gewichte
Gewicht (inkl. Standardbohle)	21.500.000 g
Weight (highest Equipment Level)	27.50 t (EN500-1 3.2.2)
Weight (lowest equipment level)	26.00 t (EN500-1 2.2.1)
Motor
Hersteller/Modell	Cummins B6.7-C173
Abgasemissionen entsprechend	Stage V
Nennleistung, SAE J1995
Nennleistung	129 kW @ 2200 rpm
Nennleistung, SAE J1995
Peak power	145 kW
DEF Tankvolumen	37 l
Tankvolumen	362 l
Average fuel conumption	9.45 l/h
After treatment	DOC + DPF + SCR
Alternativer Motor
Hersteller/Modell	Cummins QSB6.7-C173
Abgasemissionen entsprechend	Tier 3
Nennleistung	129 kW @ 2200 rpm
Peak power	145 kW
Tankvolumen	362 l
Average fuel conumption	9.45 l/h
Förderband
Lattenrost, Bedienung	Proportional with paddle sensor
Lattenrost, Breite	2x 655 mm
Transportband, Typ	Dual Conveyor, reversible

Ausrüstung (Standard und Optionen)

Standard

■ VarioSpeed
■ Pave OS
■ OpenInterface
■ Distance Dependent Slope and Crowning
■ Hydraulic Crowning

Optional

■ Fume Ventilation System
■ SafeImpact truck damping system
■ MatTracker
■ Fuel Safe Hydraulics
■ Sun Umbrellas for Side Shield
■ Magentic Storage Compartments
■ LightAssist incl. Home Coming
■ TruckAssist
■ Hydraulic controlled side shields
■ Camera System
■ MatManager Job Site Documentation System
