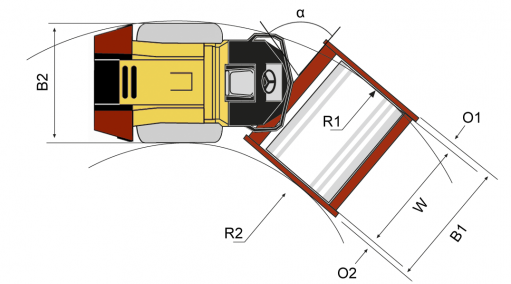

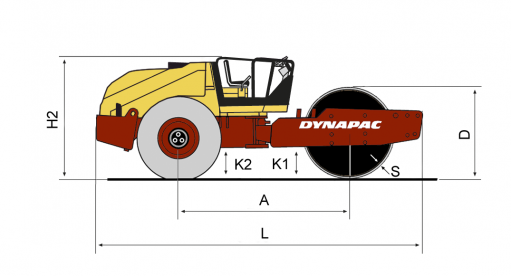

| A. Wheelbase | 2,870 mm |
|---|---|
| B1. Width, front | 2,324 mm |
| B2. Width, rear | 2,130 mm |
| D. Drum diameter | 1,523 mm |
| H1. Height, with ROPS/cab | |
| H2. Height, w/o ROPS/cab | 0 mm |
| K1. Ground clearance | 453 mm |
| K2. Curb clearance | 400 mm |
| L. Length | 5,550 mm |
| O1. Overhang, right | 107 mm |
| O2. Overhang, left | 107 mm |
| R1. Turning radius, outside | 5,400 mm |
| R2. Turning radius, inside | 3,100 mm |
| S. Drum shell thickness | 25 mm |
| W. Drum width | 2,130 mm |
| α. Steering angle | ±38° |
| Masses | |
| Operating mass (incl. ROPS) | 10,830 kg |
|---|---|
| Operating mass (incl. Cab) | kg |
| Module mass (front/rear) | 6,580 kg/ 4,250 kg |
| Max. operating mass | kg |
| Traction | |
| Speed range (Dual/TC/AS) | 0-11 |
| Tyre size (8 ply) | 23.1 x 26 |
| Max. theoretical gradeability | 34 % |
| Vertical oscillation | ±9° |
| Engine / Drive | |
| Manufacturer/Model | Kirloskar 4R1040TA3 |
| Type | Turbocharged + Intercooler, Tier III diesel |
| Rated power, SAE J1995 | 77.2 kW (105 hp ) @ 2,200 rpm |
| Fuel tank capacity | 250 l |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement / Axial piston motor with constant displacement + Axial piston motor with variable displacement (D) |
| Vibration | Axial piston pump with variable displacement / Axial piston motor with constant displacement (D) |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in rear axle & Drum radial piston motor. |
