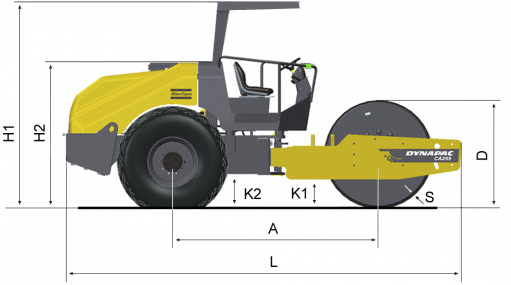

| A. Wheelbase | 2,879 mm |
|---|---|

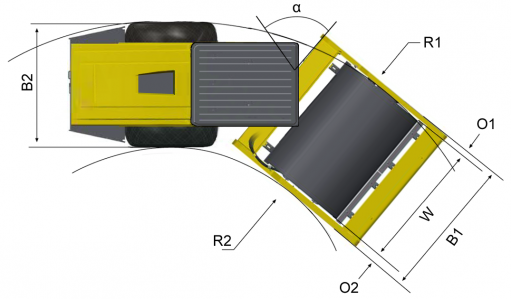

| B1. Width, front | 2,384 mm |
| B2. Width, rear | 2,130 mm |
| D. Drum diameter | 1,523 mm |
| H1. Height, with ROPS/cab | 2,977 mm |
| H2. Height, w/o ROPS/cab | 2,190 mm |
| K1. Ground clearance | 453 mm |
| K2. Curb clearance | 495 mm |
| L. Length | 5,550 mm |
| O1. Overhang, right | 127 mm |
| O2. Overhang, left | 127 mm |
| R1. Turning radius, outside | 5,400 mm |
| R2. Turning radius, inside | 3,100 mm |
| S. Drum shell thickness | 25 mm |
| W. Drum width | 2,130 mm |
| α. Steering angle | ±38° |
| Masses | |
| Operating mass (incl. ROPS) | kg |
|---|---|
| Operating mass (incl. Cab) | kg |
| Operating mass (incl. Canopy) | 11,030 kg |
| Module mass (front/rear) | 6,780 kg/ 4,250 kg |
| Max. operating mass | 12,100 kg |
| Traction | |
| Speed range | 0-6 km/h |
| Vertical oscillation | ±9° |
| Tyre size (12 ply) | 23.1 x 26 |
| Max. theoretical gradeability | % |
| Compaction | |
| Static linear load | 31.8 kg/cm |
| Nominal amplitude (high/low) | 1.7 mm/ 0.8 mm |
| Vibration frequency (high/low amplitude) | 33 Hz/ 33 Hz |
| Centrifugal force (high/low amplitude) | 246 kN/ 119 kN |
| Engine / Drive | |
| Manufacturer/Model | Kirloskar 4R1040TA3 |
| Type | Water cooled Turbo charged + Intercooler |
| Rated power, SAE J1995 | 77.2 kW (105 hp ) @ 2,200 rpm |
| Fuel tank capacity | 250 l |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motor with constant displacement. Radial piston motor with constant displacement. |
| Vibration | Axial piston pump with variable displacement / Axial piston motor with constant displacement (D) |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Hydrostatic, for all functions |
