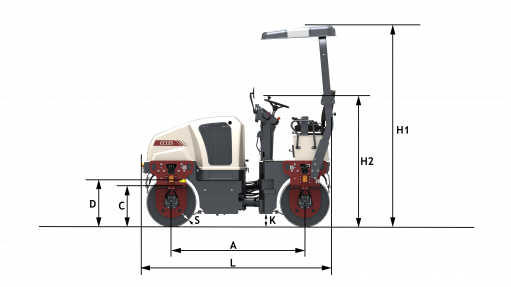

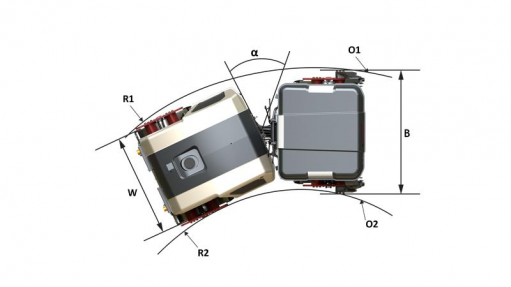

| A. Wheelbase | 1811 mm |
|---|---|
| B. Width | 1447 mm |
| B3. Width, offset | |
| C. Curb clearance | 572.5 mm |
| D. Drum diameter | 682 mm |
| H1. Height, with ROPS/cab | 2739 mm |
| H2. Height, w/o ROPS/cab | 1836 mm |
| K. Ground clearance | 180 mm |
| L. Length | 2588 mm |
| O1. Overhang, right | 31 mm |
| O2. Overhang, left | 31 mm |
| R1. Turning radius, outside | 4100 mm |
| R2. Turning radius, inside | 2900 mm |
| S. Drum shell thickness | 13 mm |
| W. Drum width | 1200 mm |
| α. Steering angle | ±29° |
| Masses | |
| Max. operating mass | 2,900 kg |
|---|---|
| Operating mass (incl. ROPS) | 2,800 kg |
| Module mass (front/rear) | 1400/1400 kg |
| Traction | |
| Speed range | 0-11 km/h (Working/Travel) |
| Vertical oscillation | ±10° |
| Max. theoretical gradeability | 34 % |
| Alternative Engine | |
| Manufacturer / Model | Mahindra |
| Type | Water cooled diesel engine |
| Rated power, SAE J1995 | 18.5 kW (24.8 hp) @ 2200 rpm |
| Fuel tank capacity | 50 l |
| Emission stage | CEV-V |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement. |
| Vibration | Gear pump/motors with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in both drums. |
| Compaction - Oscillation | |
| Oscillation frequency | Hz |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700938891 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4812155792 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4812107434 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4812108003 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4812108002 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4812108001 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4812107430 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4812107435 |
