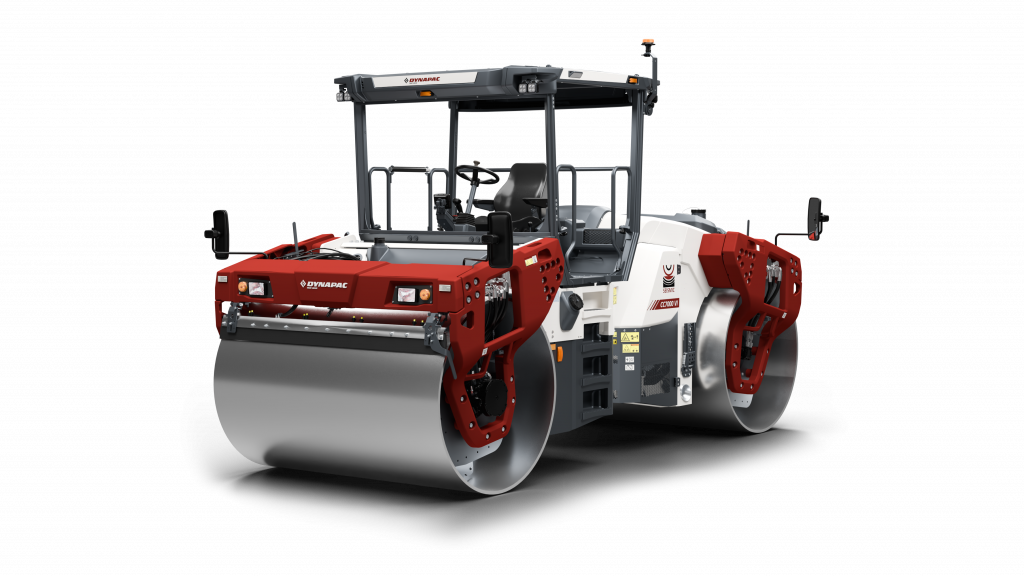

Dynapac CC7000 VI Double drum vibratory rollers

Pictures

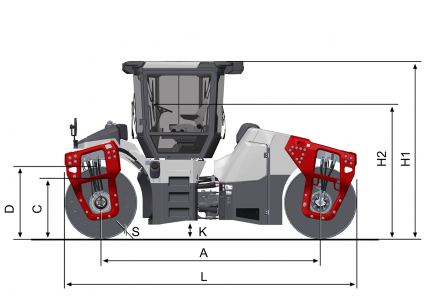

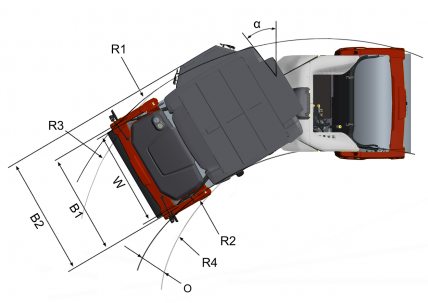

Dimensions

A. Wheelbase	153 in
B1. Width, front	93 in
B2. Width, with cab	98 in
C. Curb clearance	33 in
D. Drum diameter	55 in
H. Height, with ROPS/cab	121 in
K. Ground clearance	15 in
L. Length	208 in
O1. Overhang, right	5.5 in
R1. Turning radius, outside	308 in
R2. Turning radius, inside	224 in
S. Drum shell thickness	0.79 in
W. Working width	84 in
α. Steering angle	± 32

Operating Mass: 32,350 lbs

SLL (front/rear): ROPS: 189 pli / 196 pli
CAB: 193 pli / 198 pli

Compaction width: N/A

Technical data

Masses
Max. operating mass	35,300 lbs
Operating mass (incl. ROPS)	32,350 lbs
Operating mass (incl. Cab)	32,900 lbs
Module mass (front/rear)	ROPS: 15,900 lb / 16,450 lb
Module mass (front/rear)	CAB: 16,250 lb / 16,650 lb
Traction
Speed range	0-7.5 mph
Vertical oscillation	± 7
Max. theoretical gradeability	30 %
Engine
Manufacturer / Model	Cummins F3.8 Stage V
Type	Water cooled turbo diesel
Rated power, SAE J1995	115 kW (154 hp) @ 2,200 RPM
Fuel tank capacity	48 gal
DEF tank capacity	4.76 gal
Hydraulic system
Driving	Axial piston pump with variable displacement. Radial piston motors (2) with variable displacement.
Vibration	Axial piston pumps (2) with variable displacement. Axial piston motors (2) with constant displacement.
Steering	Gear pump with constant displacement.
Service brake	Hydrostatic in forward and reverse lever.
Parking/Emergency brake	Failsafe multidisc brake in both drums.

Sales arguments

Slidable operator station with 180° or full rotation
Touch screen display moves with the seat

4-3-2 full back-up sprinkler system

Seismic Asphalt for optimal compaction & fuel savings

Equipment (Standard and options)

Standard

■ Seismic Asphalt
■ Dual asphalt temperature sensors
■ EVIB compaction meter
■ EcoMode
■ 180° swivel and sliding seat
■ 7" Touch Screen
■ Automatic Vibration Control (AVC)
■ Automatic Water Control (AWC)
■ Back up Alarm
■ Battery Disconnect Switch
■ Dynalink Advanced subscription, 5 years
■ Emergency stop
■ Hydraulic Pressure checkpoints
■ LED drum edge lights
■ LED side lights
■ LED work light
■ Lockable intrument panel
■ Pressurized sprinkler with dual spray bars and back up pump
■ Rear view mirrors
■ Rotating beacon light
■ Rubber mounted operationplatform
■ Spring loaded adjustable scrapers
■ Sprinkler timer
■ Towing Eyelet, front and rear

Optional

■ 255° seat rotation with mini steering wheel
■ Asymmetric Comfort Cab
■ Backup camera
■ Custom Color
■ Driving lights
■ Edge presser
■ Joint cutter, 3.1" or 5.9"
■ Water tank cover, lockable

Compaction data
