Light Equipment

Dynapac DFP8X e Forward plates

  • Pictures

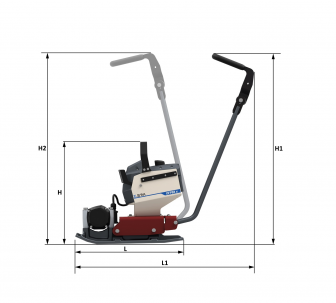

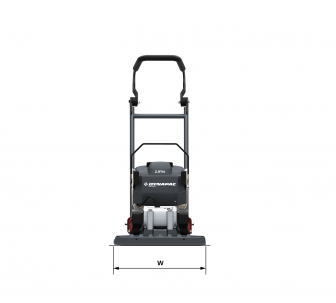

  • Dimensions
H. Height 24.4 in
H1. Height, standard handle 37.2 in
L1. Length, standard handle 38.2 in
H1. Height, comfort handle 38.9 in
L1. Length, comfort handle 42.1 in
L. Length 24 in
W. Basic plate width 16.9 in
H2. Height, comfort handle (transport mode) 38.6 in
H2. Height, standard handle (transport mode) 38.6 in
W1. Battery width 10.5 in
L2. Battery length 9.2 in
H3. Battery height 5.9 in
W2. Charger width 13.8 in
L3. Charger length 10.7 in
H4. Charger height 10.6 in
Discontinued false
Operating weight: 217 lbs
Compaction force: 3,400 lbs
Compaction Width: 16.9 in

Technical data

Masses
Basic mass (without battery) 202.9 lbs
Operating mass 217 lbs
Traction
Max. gradeability 46 %
Max. working speed 82 fpm
Engine
Manufacturer/Model Honda eGX
Battery
Charge time up to 1 hr
Run time up to 35 mins

Equipment (Standard and options)

Standard

■ Effort free start/stop system
■ Comfort handle for low HAV
■ Highly wear resistant base plate
■ Brushless electric motor
■ Protection frame for powerpack
■ One point lift

Optional

■ Removable Li-ion battery(720 Wh)
■ Charger(82.8 V)
■ Water sprinkler system 11l (+5kg)
■ Block paving mat (+4.5kg)
