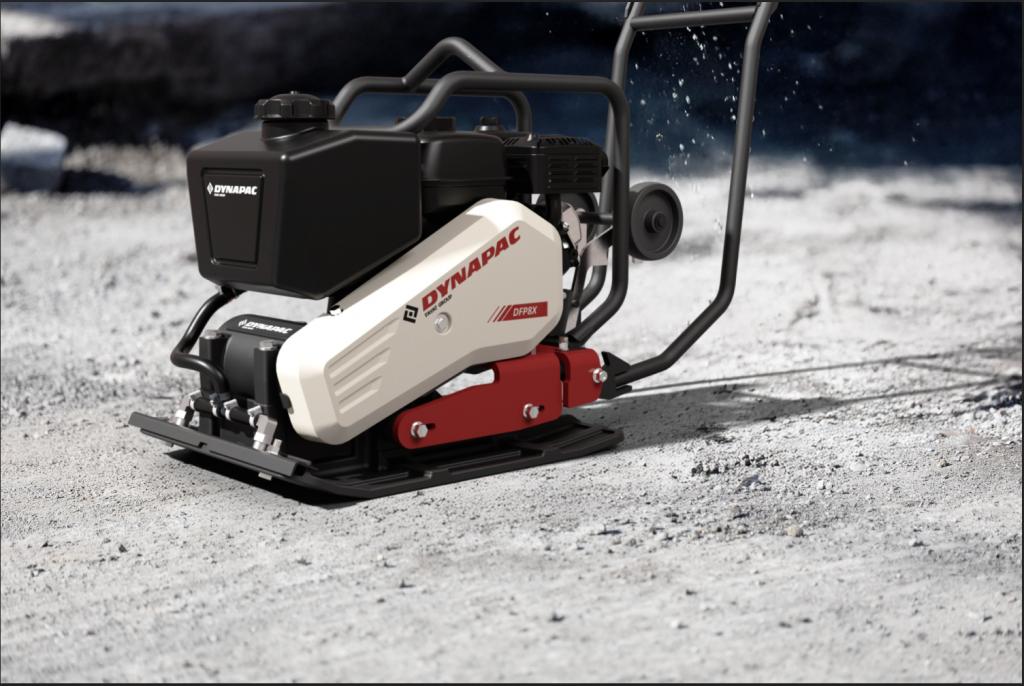

Dynapac DFP9X

Dynapac DFP9X Plate compactors

  • Pictures
  • Dimensions
H. Height 24.8 in
H1. Height, standard handle 37.2 in
H2. Height, standard handle 38.5 in
L1. Length, standard handle 38.1 in
H1. Height, comfort handle 38.9 in
H2. Height, comfort handle 38.5 in
L1. Length, comfort handle 42.1 in
L. Length 24 in
W. Basic plate width 19.6 in
Discontinued false
Operating Mass: 207 lbs
Compaction Width: 19.60 in

Technical data

Masses
Basic mass 205 lbs
Operating mass 207 lbs
Traction
Max. working speed 82 fpm
Compaction
Frequency 5580 vpm
Centrifugal force 4,271 lb
Amplitude 0.04 in
Engine
Manufacturer/Model Honda GX160
Emissions according to Stage V & US EPA
Type Air cooled,gasoline
Number of cylinders 1
Fuel consumption /h, avg. 0.30 gal
Fuel tank capacity 0.68 gal
Power 4.82 hp @ 3600 rpm

Equipment (Standard and options)

Standard


■ Foldable steering handle with vibration isolation
■ Highly wear resistant base plate
■ Automatic decompression
■ All around protection for V-belt
■ Protection frame for powerpack
■ Recoil starter
■ Carrying handles
■ One point lift

Optional


■ Water sprinkler system 11l (+2.5kg)
■ Comfort handle
■ Puncture proof transport wheels (+2kg)
■ Block paving mat
■ Service Kit
