Compact Equipment

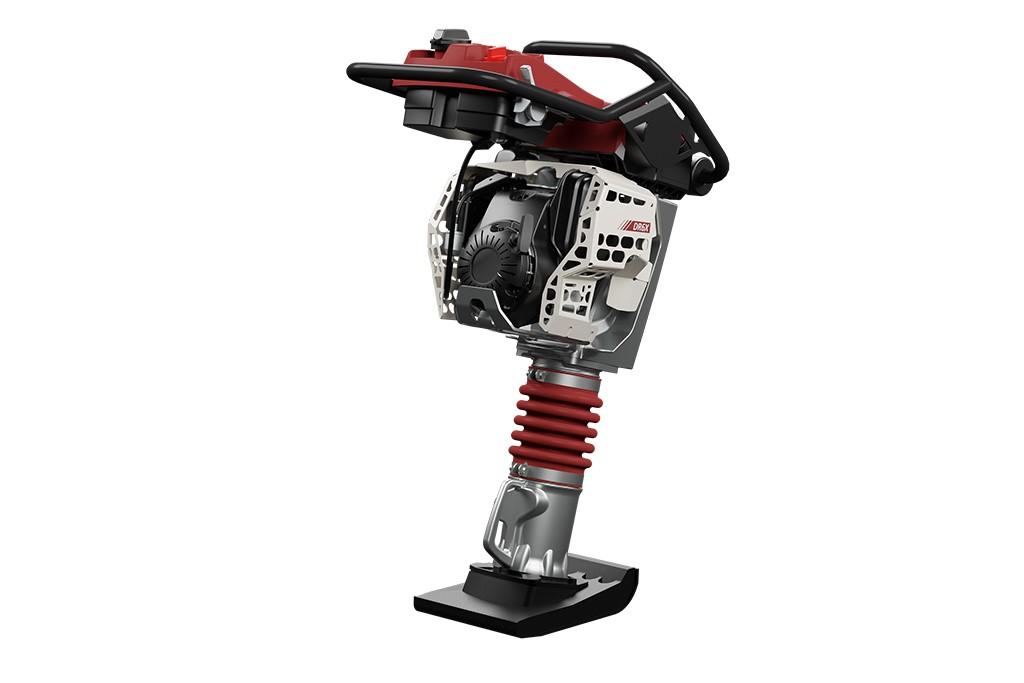

Dynapac DR6X Rammers

  • Pictures
  • Dimensions
B. Width 13.8 in
H. Height 40.6 in
L. Length 28.7 in
L1. Length 13.2 in
W. Basic shoe width 9.1 in

Product information

Technical data

Masses
Net mass 126 lbs
Operating mass 128 lbs
Traction
Max. area coverage 2,970.9 ft2 /h
Max. working speed 65.6 fpm
Compaction
Impact force 3,372 lb / 15 kN
Vibration frequency 600 – 710 vpm
Engine
Manufacturer/Model Honda GXR 120
Number of cylinders 1
Type Air cooled gasoline
Emissions according to CARB Phase lll / Stage V
Rated power
Fuel tank capacity 1 gal
Fuel consumption /h, avg. 0.02 gal
Power 3.5 HP (2.6 kW) @ 3,600 rpm

Operations & maintenance manuals

Equipment (Standard and options)

Standard


■ Low vibration handle
■ Dual stage fuel filter system
■ Air filter
■ Air pre-filter with self cleaning housing
■ Auto oil level check before start
■ Engine protection covers
■ One knob to start or stop both engine & fuel
■ Infinitely variable frequency
■ Recoil starter
■ Loading aid rollers on handle
■ One point lift
■ Hour and rpm display

Optional


■ Transport device with puncture proof wheels
■ Tamper foot widths (6.3-13.0 in)
■ Tamper foot extensions
■ Special Painting
■ Tool kit
■ Service Kit
■ Operator protection contact
■ Breaker Switch
