Compact Equipment

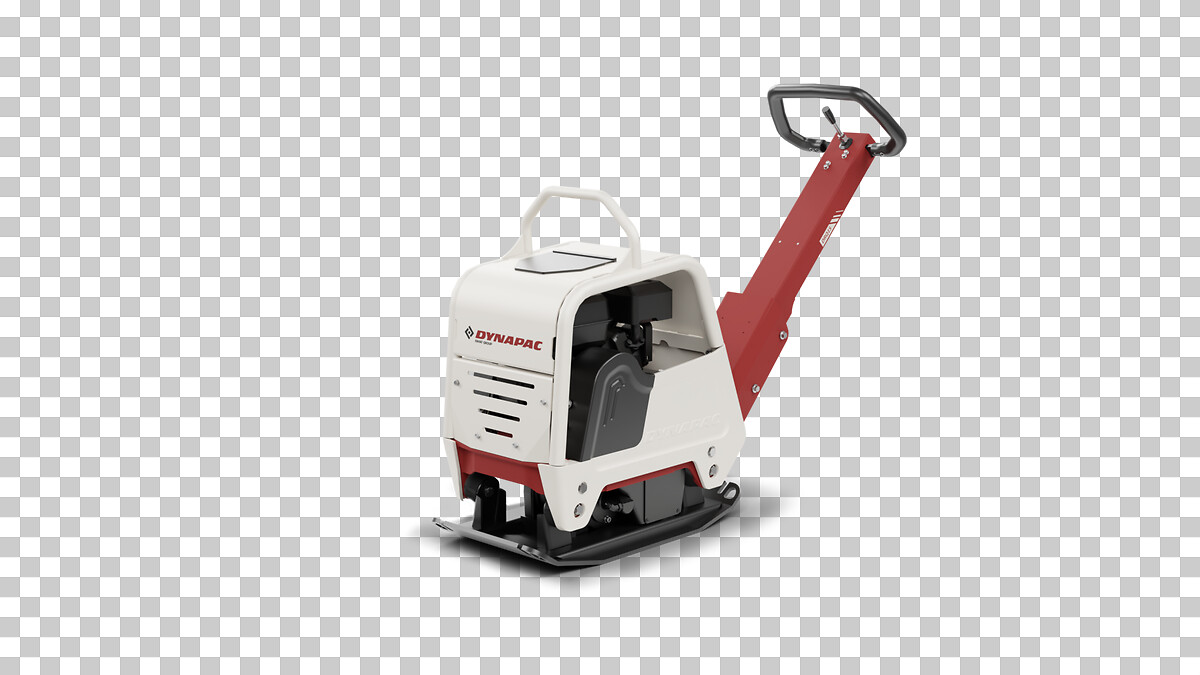

Dynapac DRQ15 Reversible plates

  • Pictures
  • Dimensions
H. Height 32.2 in
H1. Height 43.3 in
H2. Height, steering rod (raised) 1180 mm
L. Length 53.1 in
L1. Length 28.3 in
W. Basic plate width 17.7/15.7 in
Discontinued false
Operating Mass: 364 lbs
Compaction Width: 17.70 in

Technical data

Masses
Basic mass 359 lbs
Operating mass 364 lbs
Traction
Max. gradeability 20 %
Max. working speed 82 fpm
Compaction
Amplitude 0.06 in
Centrifugal force 7,194 lb
Frequency 4980 vpm
Engine
Manufacturer/Model Honda GX 200
Emissions according to Stage V & US EPA
Type Air cooled,gasoline
Number of cylinders 1
Fuel consumption /h, avg. 0.28 gal
Fuel tank capacity 0.68 gal
Power 5.7 hp @ 3600 rpm

Sales arguments


LONGEVITY
■ Wear resistance characteristics of HARDOX maximizes the life-time of the base-plate.
■ Open-style construction of the base-plate prevents the stones from getting stuck, thus reducing the wear & tear.

DURABILITY
■ Robust all-around protection cage with solid one-point lift.

COMFORT
■ Low levels of hand arm vibration is made possible by the vibration damping solution.

PRACTICAL
■ Easy-open flaps to access daily check points like fuel tank cap, filter.

Equipment (Standard and options)

Standard


■ Control handle - comfort - with vibration isolation
■ Height adjustable control lever
■ Control lever lock in transport position
■ Reverse drive protection
■ Highly wear resistant hardox base plate
■ Protection hood
■ All around protection for V-belt
■ One point lift
■ Recoil starter

Optional


■ Block paving mat
■ Service Kit
