Compact Equipment

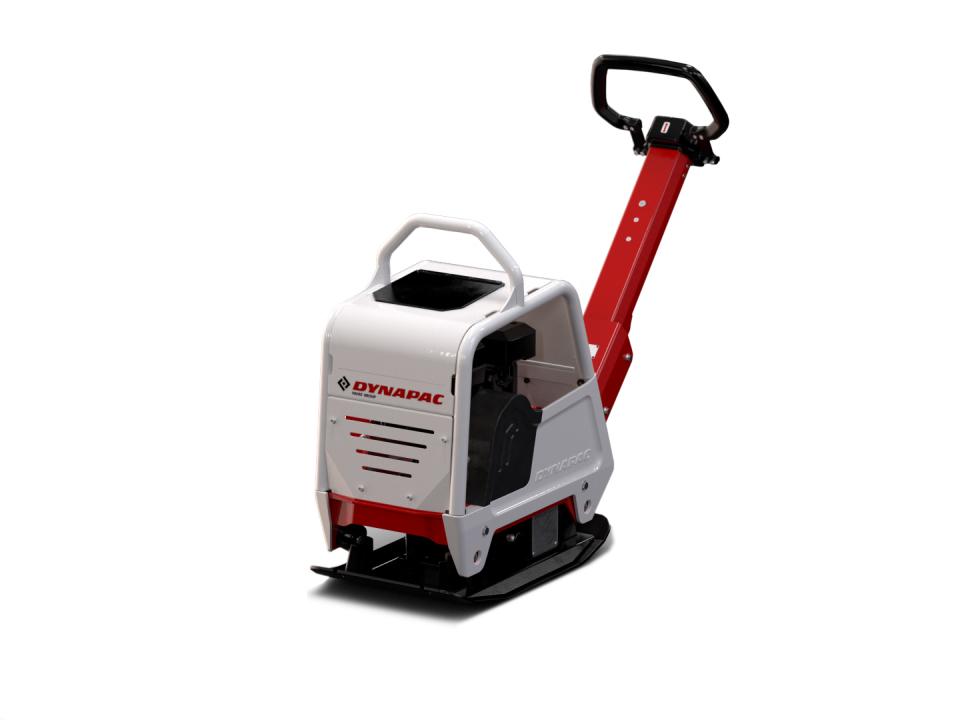

Dynapac DRQ30 Reversible plates

  • Pictures
  • Dimensions
H. Height 36.8 in
H1. Height 43.7 in
H2. Height 47.2 in
L. Length 60.6 in
L1. Length 30.9 in
W. Basic plate width 19.6 in
Discontinued false
Operating Mass: 622 lbs
Compaction Width: 19.60 in

Technical data

Masses
Basic mass 617 lbs
Operating mass 622 lbs
Traction
Max. gradeability 20 %
Max. working speed 82 fpm
Compaction
Amplitude 0.07 in
Centrifugal force 8,992 lb
Frequency 4680 vpm
Engine
Manufacturer/Model Honda GX270
Emissions according to StageV & US EPA
Type Air cooled,gasoline
Number of cylinders 1
Fuel consumption /h, avg. 0.37 gal
Fuel tank capacity 1.16 gal
Power 8.4 hp

Sales arguments


LONGEVITY
■ Wear resistance characteristics of HARDOX maximizes the life-time of the base-plate.
■ Open-style construction of the base-plate prevents the stones from getting stuck, thus reducing the wear & tear.

DURABILITY
■ Robust all-around protection cage with solid one-point lift.

COMFORT
■ Low levels of hand arm vibration is made possible by the vibration damping solution.

PRACTICAL
■ Easy-open flaps to access daily check points like fuel tank cap, filter.

Equipment (Standard and options)

Standard


■ Control handle - comfort - with vibration isolation
■ Height adjustable control lever
■ Control lever lock in transport position
■ Reverse drive protection
■ Highly wear resistant hardox base plate
■ Protection hood
■ All around protection for V-belt
■ One point lift
■ Recoil starter

Optional


■ Block paving mat
■ Service Kit
