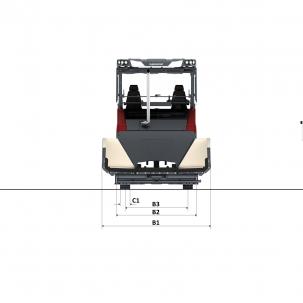

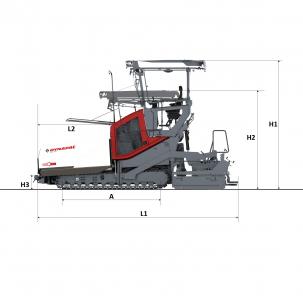

| A. Axle track | 3.36 m |
|---|---|
| B1. Width, max. | 3.47 m |
| B2. Width, standard | 2.55 m |
| B3. Width, center of tracks | 1.99 m |
| C1: Crawler Width | 0.32 m |
| H2. Height, transport | 3.10 m |
| H3. Push Roller Height | 0.46 m |
| L1. Length | 6.63 m |
| L2. Length, hopper | |
| L3. Length, hopper | 2.60 m |
| Masses | |
| Tractor weight | oz |
|---|---|
| Tractor weight (incl. standard screed) | 22,500,000 g |
| Weight (highest Equipment Level) | 27.50 t (EN500-1 3.2.2) |
| Weight (lowest equipment level) | 27.00 t (EN500-1 2.2.2) |
| Traction | |
| Max. paving speed | |
| Maximum paving speed | fpm |
| Transport speed | fpm |
| Engine | |
| Manufacturer/Model | Cummins B6.7-C260 |
| Emissions according to | EU Stage V |
| Rated power, SAE J1995 | 194 kW @ 2200 rpm |
| Rated power, SAE J1995 | |
| Peak Power | 201 kW |
| DEF tank capacity | 10 gal |
| Fuel tank capacity | 96 gal |
| Average fuel conumption | 9.45 l/h* |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB6.7-C260 |
| Emissions according to | EU Stage IIIA |
| Rated power, SAE J1995 | 194 kW @ 2200 rpm |
| Peak Power | 201 kW |
| Rated power | |
| DEF tank capacity | gal |
| Fuel tank capacity | 95.64 gal |
| Average fuel conumption | 9.45 l/h* |
| Alternative Engine | |
| Manufacturer/Model | |
| Emission stage | |
| Peak Power | |
| Rated power | |
| Rated power, SAE J1995 | |
| DEF tank capacity | |
| Fuel tank capacity | |
| Average fuel conumption | |
| Alternative Engine | |
| Manufacturer/Model | |
| Emission stage | |
| Rated power, SAE J1995 | |
| Average fuel conumption | |
| DEF tank capacity | |
| Fuel tank capacity | |
| Conveyor | |
| Conveyor control | Proportional with paddle sensor |
| Conveyor type | Conveyor, reversible |
| Conveyor width | 2x 655 mm |
Standard
Optional
