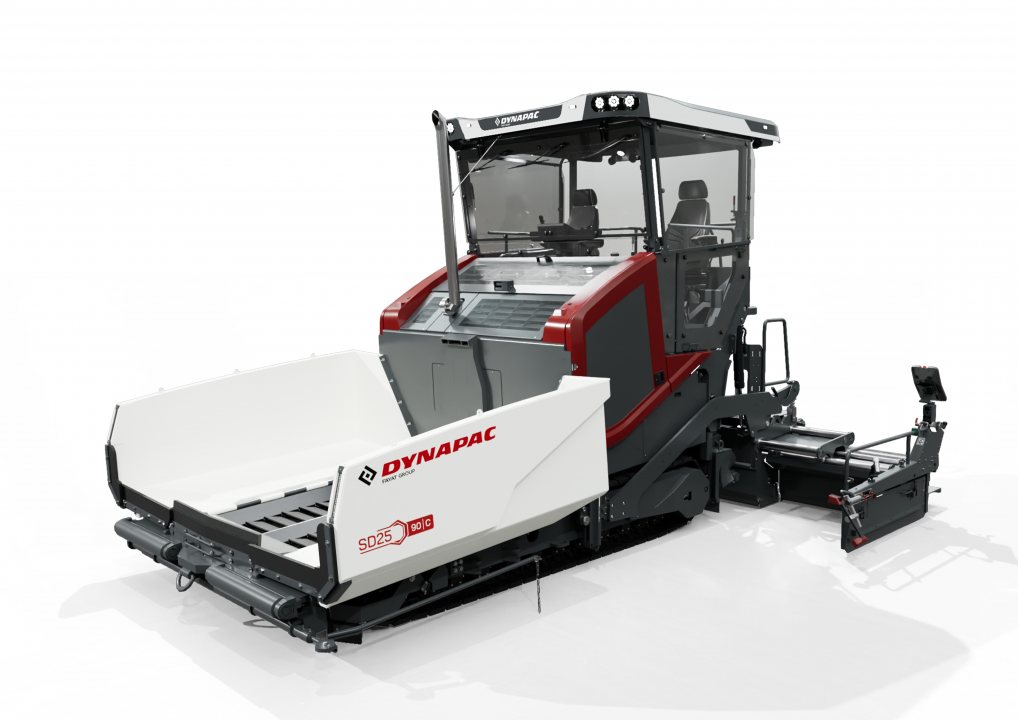

Dynapac SD25 90C HIGHWAY PAVERS

0
My comparison
  • Experience
  • Pictures
  • Dimensions
A. Axle track 3.36 m
B1. Width, max. 3.47 m
B2. Width, standard 2.55 m
B3. Width, center of tracks 1.99 m
C1. Crawler Width 0.32 m
H1. Height, max. 3.94 m
H2. Height, transport 3.10 m
H3. Push Roller Height 0.46 m
L1. Length 6.63 m
L2. Length, hopper 2.60 m
Discontinued false
The Dynapac SD Series pavers offer top-tier performance with advanced screed systems, intelligent automation, and superior traction. Featuring a dual-seat platform with a central dashboard, they ensure optimal control and comfort.

Pave OS

Innovative operating system for asphalt pavers designed for maximum efficiency, intuitive operation, and full control over the entire paving process.

Sets new standards in machine control with a clear user interface and smart automation.

Dynalink

Dynalink system is a cutting-edge telematics fleet management solution, designed to provide real-time insights and remote monitoring.

Dynalink optimizes machine performance, reduces downtime, and enhances operational efficiency.

SD25 Concept

The SD Series features a dual-seat operating system, delivering enhanced comfort and precise control for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, the SD Concept elevates the operator experience through refined control and superior ergonomics.

Level Control

Perfect Leveling – Every Time Dynapac developed its own leveling sensors.

Level Control ensures seamless machine operation while maintaining compatibility and providing maximum flexibility.

Smart Construction Site

The future of road construction is digital, connected, and data-driven.

With Dynapac Nexus and the Open Interface technology, contractors and fleet managers gain unmatched control.

XD25 Concept

The XD Series Operating Concept redefines efficiency, comfort, and usability for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, contractors and fleet managers gain unmatched control and seamless data integration.
Basic paving width: 100.39 in
Max. paving width: 472.44 in
Max. layer thickn.: 14.17 in
Theor placement cap.: 900 t/h

Features & benefits

Technical data

Masses
Tractor weight (incl. standard screed) 22,500,000 g
Weight (highest Equipment Level) 27.50 t (EN500-1 3.2.2)
Weight (lowest equipment level) 27.00 t (EN500-1 2.2.2)
Engine
Manufacturer / Model Cummins B6.7-C225
Emissions according to EU Stage V
Rated power, SAE J1995 168 kW @ 2200 rpm
Peak power 186 kW
DEF tank capacity 10 gal
Fuel tank capacity 96 gal
Average fuel conumption 9.45 l/h*
Alternative Engine
Manufacturer / Model Cummins QSB6.7-C220
Emissions according to EU Stage IIIA
Rated power, SAE J1995 164 kW @ 2200 rpm
Peak power 186 kW
Fuel tank capacity 95.64 gal
Average fuel conumption 9.45 l/h*
Conveyor
Conveyor control Proportional with paddle sensor
Conveyor type Conveyor, reversible
Conveyor width 2x 655 mm

Equipment (Standard and options)

Standard

■ VarioSpeed
■ Pave OS
■ OpenInterface
■ Distance Dependent Slope and Crowning
■ Hydraulic Crowning
■ Fume Ventilation System

Optional

■ SafeImpact truck damping system
■ MatTracker
■ Fuel Safe Hydraulics
■ Sun Umbrellas for Side Shield
■ Magentic Storage Compartments
■ LightAssist incl. Home Coming
■ TruckAssist
■ Hydraulic controlled side shields
■ Camera System
■ MatManager Job Site Documentation System

Schematics

Eager to see the schematics of Dynapac SD25 90C?

Please Log in or Register to MyDynapac to get access.

Add to compare Don't compare
Download brochures
Download datasheets
