Dynapac XD25 80C e HIGHWAY PAVERS

0
My comparison
  • Experience
  • Pictures

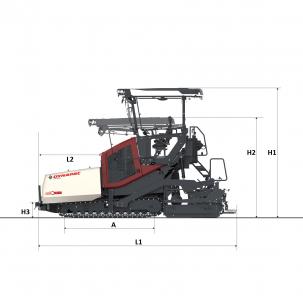

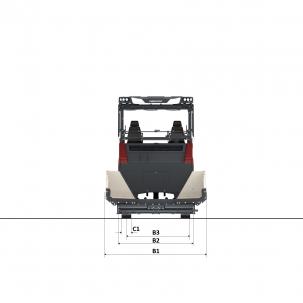

  • Dimensions
A. Axle track 2.90 m
B1. Width, max. 3.40 m
B2. Width, standard 2.55 m
B3. Width, center of tracks 1.99 m
C1. Crawler Width 0.32 m
H1. Height, max. 3.94 m
H2. Height, transport 3.10 m
H3. Push Roller Height 0.49 m
L1. Length 6.15 m
L2. Length, hopper 2.12 m
Discontinued false

Pave OS

Innovative operating system for asphalt pavers designed for maximum efficiency, intuitive operation, and full control over the entire paving process.

Sets new standards in machine control with a clear user interface and smart automation.

Dynalink

Dynalink system is a cutting-edge telematics fleet management solution, designed to provide real-time insights and remote monitoring.

Dynalink optimizes machine performance, reduces downtime, and enhances operational efficiency.

SD25 Concept

The SD Series features a dual-seat operating system, delivering enhanced comfort and precise control for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, the SD Concept elevates the operator experience through refined control and superior ergonomics.

Level Control

Perfect Leveling – Every Time Dynapac developed its own leveling sensors.

Level Control ensures seamless machine operation while maintaining compatibility and providing maximum flexibility.

Smart Construction Site

The future of road construction is digital, connected, and data-driven.

With Dynapac Nexus and the Open Interface technology, contractors and fleet managers gain unmatched control.

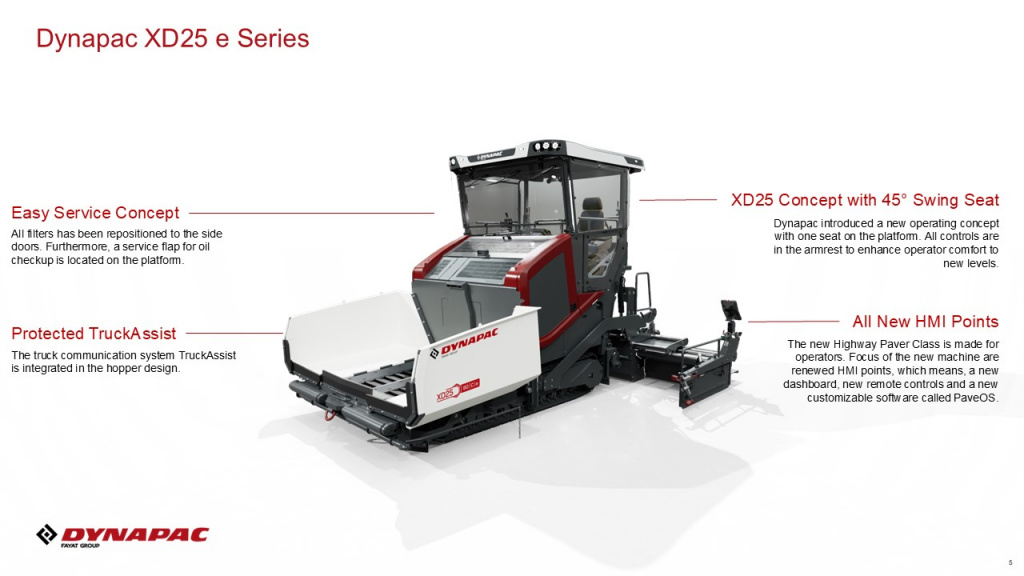

XD25 Concept

The XD Series Operating Concept redefines efficiency, comfort, and usability for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, contractors and fleet managers gain unmatched control and seamless data integration.
Basic paving width: 0.10 in
Max. paving width: 236.22 in
Max. layer thickn.: 12.20 in
Theor placement cap.: 800 t/h

Technical data

Masses
Tractor weight (incl. standard screed) 21,000,000 g
Conveyor
Conveyor control Proportional with paddle sensor
Conveyor type Dual Conveyor, reversible
Conveyor width 2x 655 mm
Electrical System
Auxiliary battery voltage 24 V
Battery capacity (gross) 294 kWh
Battery type Lithium-Ion (NMC)
Motor type Permanent Magnet Synchronous

Motor (PMSM)
Nominal battery voltage 665 V
System Power (Peak) 235 kW
Charging
5 – 80 % @ 235 kW (DC) ~ 40 min
5 – 80 % @ 400 V, 43 kW (AC, Type II) ~ 4.5 h

Equipment (Standard and options)

Standard

■ Pave OS
■ Dynapac Bypass Charging
■ Dynalink Advanced Telematics
■ Open Interface

Optional

■ Distance Dependent Slope and Crowning
■ Hydraulic Crowning
■ Fume Ventilation System
■ SafeImpact Truck Damping System
■ MatTracker
■ Sun Umbrellas for Side Shield
■ Magentic Storage Compartments
■ LightAssist incl. Home Coming
■ TruckAssist
■ Hydraulic Controlled Side Shields
■ Camera System
■ MatManager Job Site Documentation
