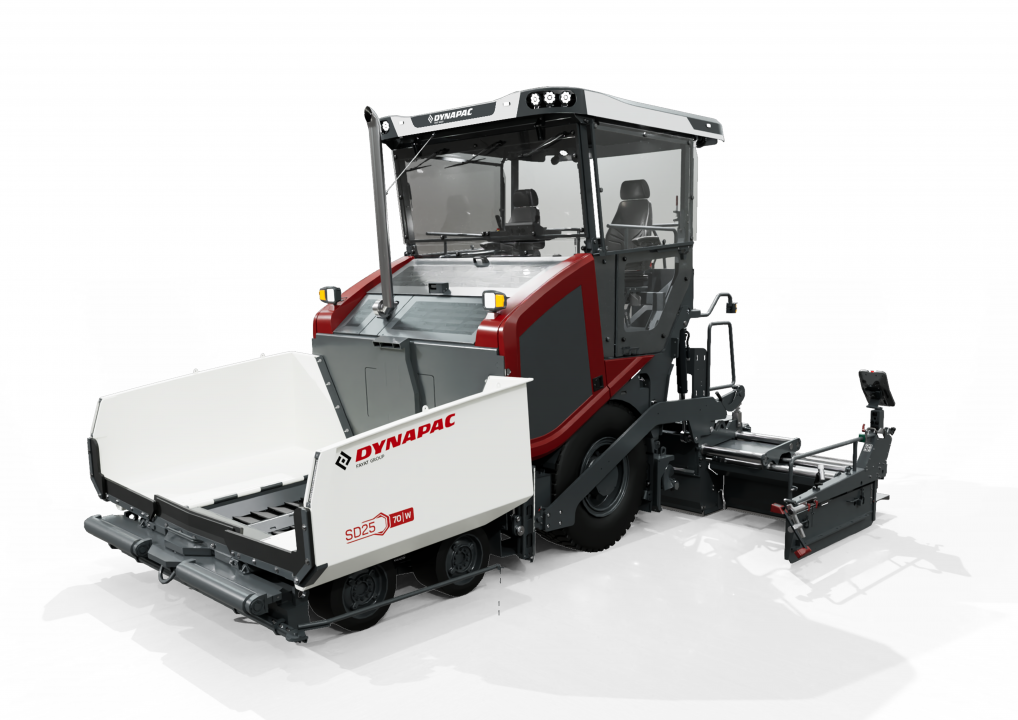

Dynapac SD25 70W Asfaltutläggare

0
Min jämförelse
  • Experience
  • Bilder
  • Mått
A. Axelavstånd 2.24 m
B1. Bredd, max. 3.25 m
B2. Bredd, standard 2.55 m
B3. Spårvidd 2.05 m
C1. Crawler Width 0.45 m
H1. Höjd, max. 3.94 m
H2. Höjd, transport 3.10 m
H3. Push Roller Height 0.49 m
L1. Längd 6.10 m
L2. Längd, materialtråg 2.12 m
W. Bredd, hjul 0.30 m
Discontinued false
The Dynapac SD Series pavers offer top-tier performance with advanced screed systems, intelligent automation, and superior traction. Featuring a dual-seat platform with a central dashboard, they ensure optimal control and comfort.

Pave OS

Innovative operating system for asphalt pavers designed for maximum efficiency, intuitive operation, and full control over the entire paving process.

Sets new standards in machine control with a clear user interface and smart automation.

Dynalink

Dynalink system is a cutting-edge telematics fleet management solution, designed to provide real-time insights and remote monitoring.

Dynalink optimizes machine performance, reduces downtime, and enhances operational efficiency.

SD25 Concept

The SD Series features a dual-seat operating system, delivering enhanced comfort and precise control for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, the SD Concept elevates the operator experience through refined control and superior ergonomics.

Level Control

Perfect Leveling – Every Time Dynapac developed its own leveling sensors.

Level Control ensures seamless machine operation while maintaining compatibility and providing maximum flexibility.

Smart Construction Site

The future of road construction is digital, connected, and data-driven.

With Dynapac Nexus and the Open Interface technology, contractors and fleet managers gain unmatched control.

XD25 Concept

The XD Series Operating Concept redefines efficiency, comfort, and usability for asphalt paver operators.

With an ergonomic dashboard redesign and innovative swing seat, contractors and fleet managers gain unmatched control and seamless data integration.
Basbredd: 2 550 mm
Max. arbetsbredd: 9 m
Max. utläggningstjocklek: 300 mm
Teoretisk läggn.kap.: 700 t/h

Funktioner och fördelar

Teknisk data

Vikter
Vikt (inkl. standardskrid) 20 000 000 g
Weight (highest Equipment Level) 23.50 t (EN500-1 3.2.2)
Weight (lowest equipment level) 22.00 t (EN500-1 2.2.2)
Motor
Tillverkare/Modell Cummins B6.7-C173
Emissionsvärde enligt EU Stage V
Max. effekt, SAE J1995 129 kW @ 2200 rpm
Peak power 145 kW
DEF tank 37 l
Bränsletank 362 l
Average fuel conumption 9.45 l/h*
After treatment DOC + DPF + SCR
Motoralternativ
Tillverkare/Modell Cummins QSB6.7-C173
Emissionsvärde enligt EU Stage IIIA
Max. effekt, SAE J1995 129 kW @ 2200 rpm
Peak power 145 kW
Bränsletank 362 l
Average fuel conumption 9.45 l/h*
Matarband
Bredd 2x 655 mm
Matarband, styrning Proportional with paddle sensor
Typ Dual Conveyor, reversible

Utrustning (Standard och optioner)

Standard

■ VarioSpeed
■ Pave OS
■ OpenInterface
■ Distance Dependent Slope and Crowning
■ Hydraulic Crowning
■ Fume Ventilation System

Extra utrustning

■ Fume Ventilation System
■ SafeImpact truck damping system
■ MatTracker
■ Fuel Safe Hydraulics
■ Sun Umbrellas for Side Shield
■ Magentic Storage Compartments
■ LightAssist incl. Home Coming
■ TruckAssist
■ Hydraulic controlled side shields
■ Camera System
■ MatManager Job Site Documentation System
